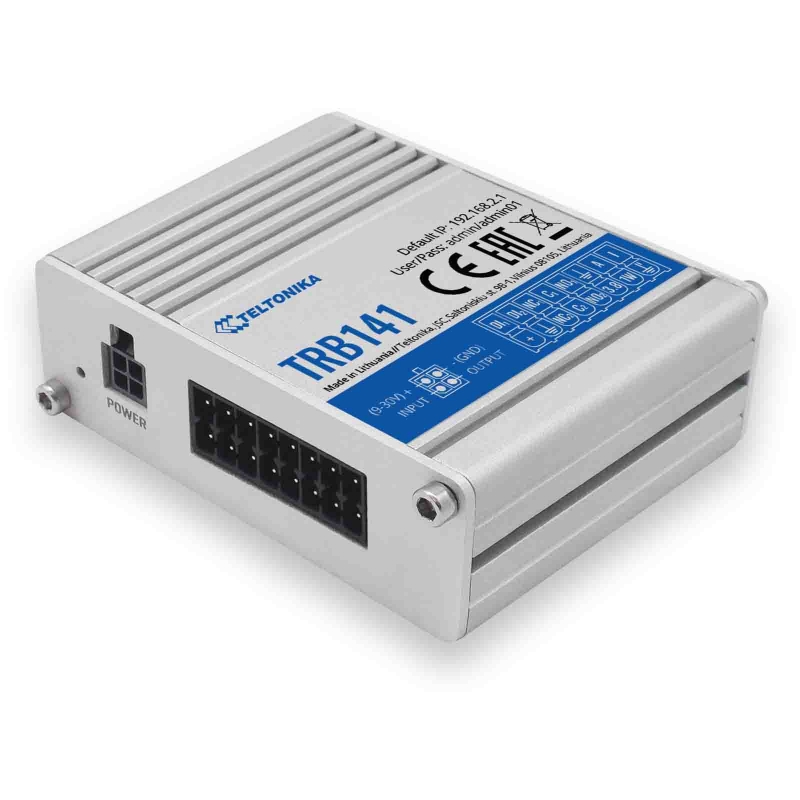

Teltonika TRB141 LTE I/O Gateway to małe, lekkie i energooszczędne urządzenie IoT wyposażone w wiele opcji wejść i wyjść (w tym cyfrowe, przekaźnikowe, analogowe i izolowane), port microUSB oraz procesor ARM Cortex-A7 1,2 GHz i 128Mb pamięci RAM.
Karta sieciowa oparta jest na systemie Linux, z funkcjami Firewall, sieci VPN, kotroli SMS czy obsługi RMS i FOTA, doskonale nadaje się do aktualizacji łączności z istniejącym lub nowym sprzętem.
Najważniejsze cechy:
Karta sieciowa oparta jest na systemie Linux, z funkcjami Firewall, sieci VPN, kotroli SMS czy obsługi RMS i FOTA, doskonale nadaje się do aktualizacji łączności z istniejącym lub nowym sprzętem.
TRB to seria bram przemysłowych, które są bardzo kompaktowe i ekonomiczne.
Najważniejsze cechy:
- port microUSB
- Wejścia: 2x cyfrowe, 1x izolowane, 1x analogowe
- Wyjścia: 1x cyfrowe, 2x przekaźnikowe
- Konfigurowalne I/O: 2x cyfrowe wejście/wyjście
- LTE kat. 1 do 10 Mb/s
- 1x złącze SMA dla LTE
- procesor ARM Cortex-A7 1,2 GHz i 128MB pamięci RAM
- Kompaktowy rozmiar, łatwa integracja
- Szeroki zakres napięć zasilania 9-30V
- System zdalnego zarządzania Teltonika - RMS
- Oparty na systemie operacyjnym Linux pozwalającym na dużą personalizację oprogramowania
MOBILE | |
Mobile module | 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
SMS/Call | SMS status, SMS configuration, Call utilities |
NETWORK | |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT |
Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation |
DDNS | Supported >25 service providers, others can be configured manually |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server services can run simultaneously |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
FOTA | Firmware update from sever, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration |
MQTT | MQTT Broker, MQTT publisher |
JSON-RPC | Management API over HTTP/HTTPS |
Modbus | Modbus TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS | |
CPU | ARM Cortex-A7 1.2 GHz CPU |
RAM | 128 MB (50 MB available for userspace) |
FLASH memory | 512 MB (70 MB available for userspace) |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenLinux based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with build environment provided |
INPUT/OUTPUT | |
Input | 2 x Digital inputs, 1 x Isolated input, 1 x Analog input |
Output | 1 x Digital Output, 2 x Relay outputs |
Configurable I/O | 2 x Digital Inputs/Outputs |
Events | SMS status |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max |
Power consumption | < 5 W |
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) | |
USB | Virtual network interface via USB |
I/Os | 4 Inputs, 3 Outputs + 2 x Configurable Digital Inputs/Outputs on 4 pin power connector |
Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
Power | 4 pin DC connector with 2 x configurable Digital Inputs/Outputs |
Anntenas | 1 x SMA for LTE |
Reset | Restore factory settings button |
PHYSICAL SPECIFICATIONS | |
Casing material | Aluminum housing |
Dimensions | 60 mm x 70 mm x 18 mm (H x W x D) |
Weight | 129 g |
Mounting options | Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
OPERATING ENVIRONMENT | |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE/RED, EAC, RoHS, WEEE |
EMI | |
Standards | Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
ESD | EN 61000-4-2:2009 |
RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
EFT | EN 61000-4-4:2012 |
Surge protection | EN 61000-4-5:2014 |
CS | EN 61000-4-6:2014 |
DIP | EN 61000-4-11:2004 |
RF | |
Standards | EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
SAFETY | |
Standards | IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
